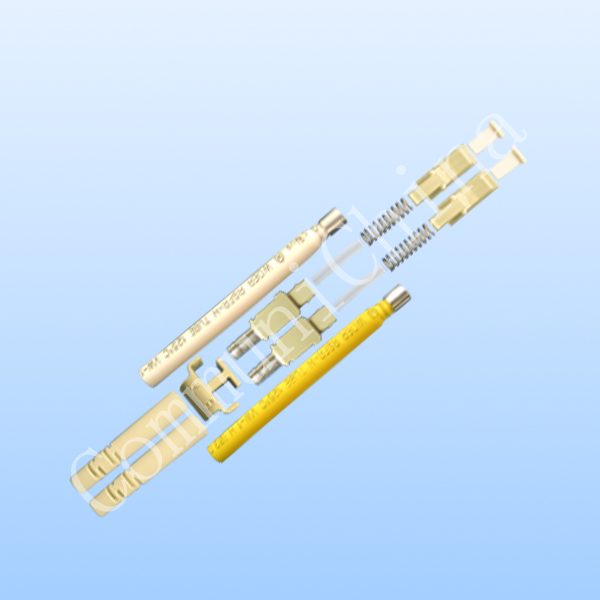

LC-MM-DX

Description:

CommuniChina can supply a wide range of fiber optic connectors for various applications.

LC series connectors are the most popular type in the Network and Telecommunication.



Features:

* Multi-mode  Duplex

* ANSI \ IEC \ TIA/EIA \ NTT and JIS standard compatible

* UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm

* Multi-piece type or one-piece type is available

* Available in customied colours and customied packaging

* Precision mechanical dimensions

* Low insertion loss and back reflection

* Fully Zirconia Ceramic Ferrule UPC or 8 degree APC diameter125~127 um high concentricity

* Complies with IEC 61754-4,IEC 60784-14 and Tia 604-3

* Content RoHS claim



Application:

* FTTP

* CATV; LAN & WAN

* Network; Broadband

* Telecommunication



Specification:





Type

SC duplex connector

Mode

Single-mode

Insertion Loss

≤0.2dB

Durability (1000 Mating)

≤0.2dB

Operating Temperature

-40~+80 centigrade degree

Storage Temperature

-40~+85 centigrade degree

Fully Zirconia Ceramic Ferrule (UPC,APC)            Remark: Ferrule Concentricity SM≤1um; MM≤1.4um

Ferrule inner diameter tolerance +1/-0um             Ferrule outer diameter tolerance +/-0.5um
